Hayward - Heater Parts - H-Series H135ID1

In stock

SKU

HTR-H135ID1-PTS-GROUPED

Grouped product items

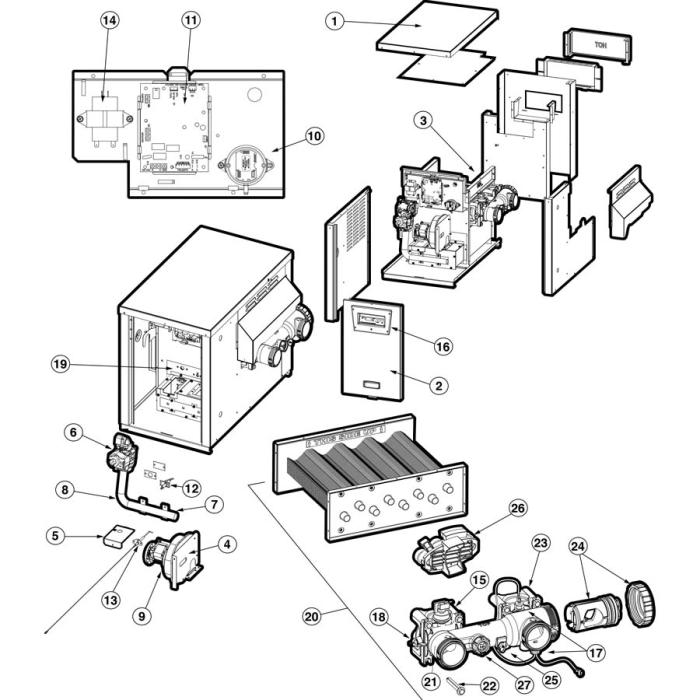

Key	Product Name	Add Qty
3	PTS-FDXLFCS1931 (Flue Collector Side Panel Kit W/ High Limit)	- +
6	PTS-FDXLGSV0001 (Gas Valve Nat. Kit Fd)	- +
N/S	PTS-FDXLGSV0002 (Gas Valve Lp. Kit Fd)	- +
8	PTS-FDXLBWR1930 (Combustion Blower Kit Fd)	- +
N/S	PTS-FDXLBVS1930 (Blower Vacuum Switch)	- +
9	PTS-FDXLICB1930 (Intgr. Ctrl. Brd. Kit Fd)	- +
10	PTS-FDXLIGN1930 (Ignitor Kit Fd)	- +
11	PTS-IDXLFLS1930 (Flame Sensor)	- +
12	PTS-IDXLTRF1135 (Kit-Abg Series Transformer 120V-24 Vac)	Out of stock
12	PTS-FDXLWPS1930 (Pressure Switch, Fd Heaters)	- +
14	PTS-FDXLWPS1931 (Pressure Switch, Fd Heaters)	- +
15	PTS-IDXLBKP1135 (Kit-Bezel & Keypad Assy Abg135)	- +
15	PTS-FDXLHLI1930 (High Limit Kit, Fd Heaters)	- +
16	PTS-FDXLTER1930 (Thermistor, Fd Heater)	- +
17	PTS-FDXLTER1931 (Thermistor)	- +
18	PTS-FDXLGSK1934 (Cc Frnt/Air Box Gasket Kit Fd)	Out of stock
18	PTS-FDXLHXA1150 (Heat Ech Assy-H150Fd/135Kabg)	- +
19	PTS-FDXLFHA1930 (Header Assy, Fd Heaters)	- +
20	PTS-FDXLHDW1930 (Header Hardware Kit, Fd)	- +
21	PTS-FDXLHMB1930 (Kit-Header Mounting Base)	- +
22	PTS-FDXLBKP1930 (Bezel & Keypad Assy Kit Fd)	- +
23	PTS-SPX4000FG (Drain Plug W/Gasket)	- +
24	PTS-FDXLPRM1930 (Kit-Polymer Return Manifold)	- +
25	PTS-CHXRLV1930 (Relief Valve Cz,Hm2,Cps,Psg,Sg)	- +
26	PTS-FDXLBRN1931 (Fd Burner Tube)	- +
N/S	PTS-FDXLFOR1930 (Header O-Ring Kit, Fd Htr)	- +
N/S	PTS-FDXLEGL1930 (Exhaust Gas Temperature Limit (One-Use))	- +
N/S	PTS-FDXLFSKC30 (Kit, Bulk 3.0 Amp Blade Fuse)	- +

Below You'Ll Find The Consolidated List Of Replacement Parts For The Hayward H-Series 135,000 Btu Heater, Model H135Id1.

Details

A consolidated list of replacement parts for the Hayward H-Series 135,000 BTU heater, model H135ID1. If you're having difficulty finding the part you need, please reach out to one of our representatives in the contact section below.

More Information

More Information
Enable Product	Enabled
Visibility	Catalog, Search
Part Diagram Key	3,6,N/S,8,N/S,9,10,11,12,12,14,15,15,16,17,18,18,19,20,21,22,23,24,25,26,N/S,N/S,N/S,N/S,N/S,N/S,N/S,N/S,N/S,N/S
