Hayward - Pump Parts - Tristar Sp3200Ee

In stock

SKU

PMP-SP3200EE-PTS-GROUPED

Grouped product items
Key	Product Name	Add Qty
1	PTS-SPX3200UNKIT (Tristar Union Conn. Kit)	- +
2	PTS-SPX3200UG (Union Gasket (T-Seal))	- +
3	PTS-SPX3200A (Pump Strainer Housing)	- +
4	PTS-SPX3200DLS (Str Cover Kit)	- +
5	PTS-SPX3200S (Strainer Cover O-Ring)	- +
6	PTS-SPX3200M (Strainer Basket)	- +
7	PTS-SPX3200Z8 (Screw-Diffuser)	- +
8	PTS-SPX4000Z1 (Union O-Ring)	- +
9	PTS-SPX3200B3 (Diffuser-3Hp)	- +
10	PTS-SPX3200Z1 (Screw-Impeller)	- +
11	PTS-SPX3021R (Impeller Ring)	- +
12	PTS-SPX3205C (Impeller)	- +
12	PTS-SPX3207C (Impeller-3/4Hp W/Screw)	- +
12	PTS-SPX3210C (Impeller-1Hp W/Screw)	- +
12	PTS-SPX3215C (Impeller-1-1/2Hp W/Screw)	- +
12	PTS-SPX3220C (Impeller-2Hp W/Screw)	- +
12	PTS-SPX3230C (Impeller-3Hp W/Screw)	Out of stock
12	PTS-SPX3230C5 (Impeller-5Hp W/Screw)	Out of stock
13	PTS-SPX3200SA (Shaft Seal Assy.)	- +
14	PTS-SPX3200T (O-Ring-Housing)	- +
15	PTS-SPX3200E (Seal Plate)	- +
16	PTS-SPX3200Z211 (Kit-Housing Insert&Seal Plate)	- +
17	PTS-SPX3200Z3 (Bolt-Housing)	- +
18	PTS-SPX3200Z5 (BOLT-MOTOR)	- +
19	PTS-SPX4000FG (Drain Plug W/Gasket)	- +
22	PTS-SPX3200SR (Base, Tall Riser)	- +
NS	PTS-SPXHKIT100 (Quick Fix Kit, Tristar Pump)	- +
NS	PTS-SPX3210Z1BER (Tristar Mtr-1Hp,Sq Flg)	- +
NS	PTS-SPX3215Z1BER (Tristar Mtr-1 1/2Hp,Sq Flg)	Out of stock

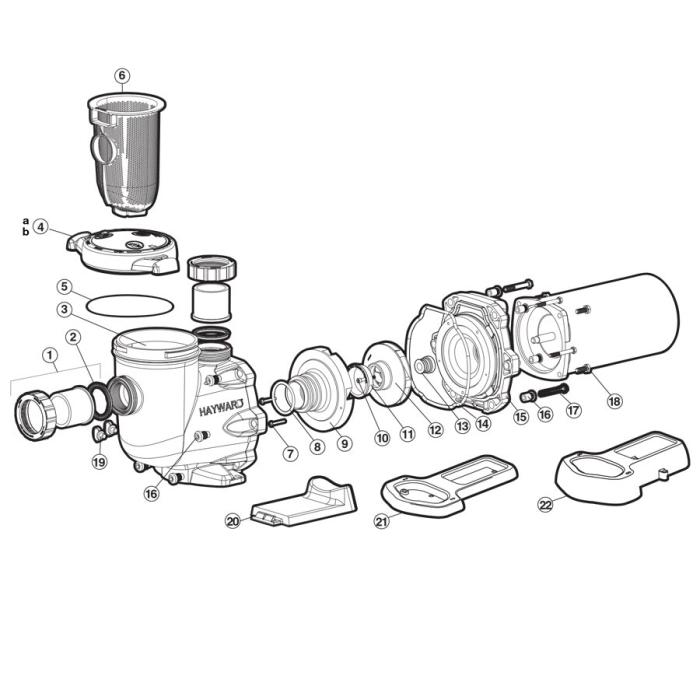

Below Are The Consolidated Replacement Parts For The Hayward Tristar Sp3200Ee

Details

A consolidated list of replacement parts for the Hayward Tristar SP3200EE. If you're having trouble finding the part you need feel free to reach out to one of our representatives in the contact section below.

More Information

More Information
Enable Product	Enabled
Visibility	Catalog, Search
Part Diagram Key	1,2,3,4,5,6,7,8,9,10,11,12,12,12,12,12,12,12,13,14,15,16,17,18,19,22,NS,NS,NS
