Hayward - Sand Filter Parts - Pro Series Plus

In stock
SKU
FIL-S311SX-PTS-GROUPED
Grouped product items
Key Product Name Inventory Add Qty
1 PTS-SX200G (Manual Air Relief)
-
+
2/25 PTS-SX200Z5 (O Ring)
-
+
3 PTS-SX244K (Top Dome)
-
+
4 PTS-GMX600F (Valve O-Ring)
-
+
5 PTS-SX310N (Valve Clamp-Heavy Duty-)
-
+
7 PTS-SX310HNPAK10 (S310 Pivot Lateral (Set Of 10))
-
+
10B PTS-SX180HG (Drain Cap & Gasket)
-
+
11A PTS-SX200H (Bottom Drain Screen)
-
+
11B PTS-SX180LA (Hayward Drain Cap Kit - Cap, Gasket, Screen)
-
+
12A PTS-SX310J (Support Stand)
-
+
12B PTS-SX360Z1 (O Ring (S-360))
-
+
13B PTS-SX360E (O Ring Spacer)
-
+
14 PTS-SX244PX (Bulkhead Fitting -S244/311 Aft)
-
+
15A PTS-SX311F (Bulkhead Fitting)
-
+
NS PTS-SP0710X62 (Hayward Vari-Flo Replacement 1 1/2" Control Valve Assembly With Gauge)
-
+
15B PTS-SP0715X62 (Hayward Pro-Series Vari-Flo Control Valve with Gauge)
-
+
16 PTS-SX200Z4PAK2 (Valve O-Ring (Set Of 2))
-
+
17A PTS-ECX270861 (Pressure Gauge Boxed)
-
+
18 PTS-DEX2400S (Air Relief Assy)
-
+
19A/C PTS-DEX2400Z3A (Hayward - Dex2400Z3A - O-Ring Replacement Set)
-
+

Below You'Ll Find The Consolidated List Of Replacement Parts For The Hayward Pro Series Plus Sand Filter And The Associated Models S311Sx, S311Sxv And S360Sx.

A consolidated list of replacement parts for the Hayward Pro Series Plus sand filter and the associated models S311SX, S311SXV and S360SX. If you're having difficulty finding the part you need, please reach out to one of our representatives in the contact section below.

More Information
Enable Product Enabled
Visibility Catalog, Search

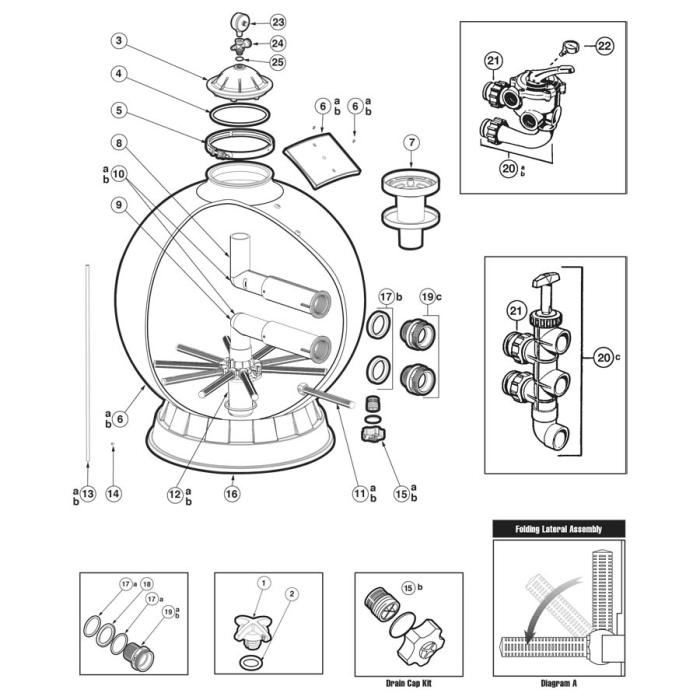

Part Diagram Key 1,2/25,3,4,5,7,10B,11A,11B,12A,12B,13B,14,15A,NS,15B,16,17A,18,19A/C,19B,20A,20B,20C,21,22/23,24,NS
