Jacuzzi - Pump Parts - Magnum High Flow Pump

In stock

SKU

magnum

Grouped product items
Key	Product Name	Add Qty
2	PTS-22340301R (Flinger )	- +
3	PTS-02136802R (Brkt Mtr Mtg, Magnum #9981)	- +
4	PTS-14129324R4 (Hex Cap Pl 3/8-16X7/8)	- +
5	PTS-02136604R (5Mp Seal Hsg 4-9/16Fit #9982)	- +
5	PTS-02160901R (Seal Hsg Magn 2Hp 5-5/32F 9982)	- +
5	PTS-02136703R (Seal Hsg 1=Â½-3Hp Magn #9982)	- +
6	PTS-10139020R (REPLMNT SHAFT SEAL 3/4 T16)	- +
7	PTS-05380001R (Â½Hp Imp4-3/16D W/Wr #9718)	- +
7	PTS-05380100R (9717 IMP 4-1/16D W/WR GFN3)	- +
7	PTS-05380209R (9717 IMP 4-25/64D W/WR GNF3)	- +
7	PTS-05380308R (9716 Imp 4-9/16D W/Rg Gnf3)	- +
7	PTS-05385208R (9716 Imp 5)	- +
7	PTS-05380506R (9715 Imp4-3/4D W/Wr Gfn-3)	- +
8	PTS-10146207R (FLOATING EYE SEAL 2½DX3/8 ELAS)	- +
8	PTS-10146314R (Seal Ring 3Dx3/8Thk Epdm)	- +
8	PTS-10146413R (Seal Ring 3Â½Dx7/32Thk Epdm)	- +
9	PTS-06015705R (DIFF 4-1/4 FIT -1/8 L/WR#9719)	- +
9	PTS-06016307R (9724 Diff 5.26D Phox)	Out of stock
9	PTS-06016604R (Rc Diff 2Hp 5.10 Fit #9724)	- +
9	PTS-06016406R (Rc Diff 3Hp 3.57 Fit #9724)	Out of stock
10	PTS-14420608R2 (Screws 8X1-1/4)	Out of stock
11	PTS-47023254R (SQ-RG 2-3/4X1/8X1/8NTRL)	- +
12	PTS-47036447R (JACUZZI O-RG)	- +
13	PTS-03085602R (9977 Strn/Case Assy 2)	- +
14	PTS-31272206R (RED BUSH 2MPTX1.5FNPT PVC40)	- +
15	PTS-42288605R (9980 PUMP MTG NUT PC)	- +
16	PTS-42286708R (8498 Mtg Nut Ratchet Drln)	- +
17	PTS-16109506R (MAGNUM STRAINER BSKT ASSY)	- +
18	PTS-39257902R (STRAINER COVER F/MAGN, R,P)	- +
19	PTS-47035803R (O-RG 5.600X6.020X.210 B-N)	- +
20	PTS-42282806R (COVER RING LOK)	- +
21	PTS-12261380R (5878 Magnum Pump Base Assy)	- +
22	PTS-14038328R (Pin Ss Dowel 1/4)	- +
23	PTS-31160906R2 (PLUG 1/4-18NPSM W/O-RING 2/BAG)	- +
24	PTS-47011200R2 (Plug O-Ring (2/Bag))	- +

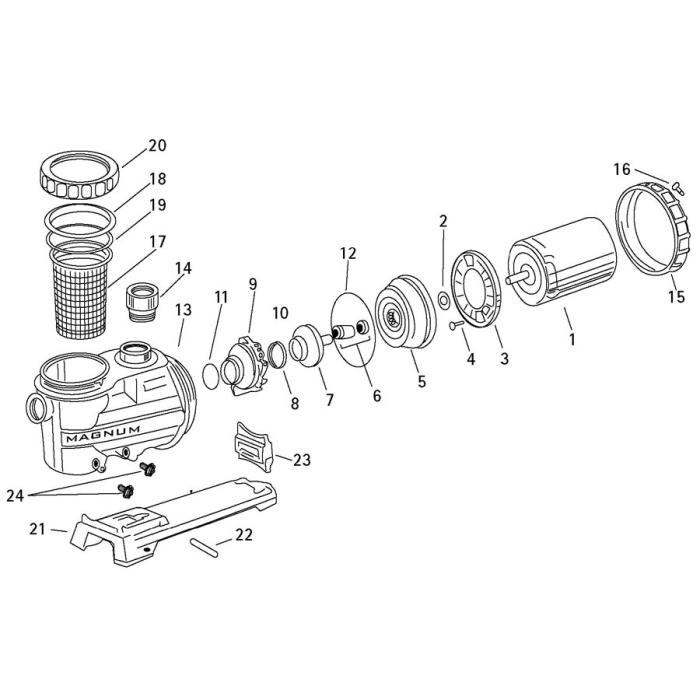

Below Are The Replacement Parts For The Jacuzzi Magnum High Flow Pump

Details

The replacement parts for the Jacuzzi Magnum High Flow Pump. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.

More Information

More Information
Enable Product	Enabled
Visibility	Catalog, Search
Part Diagram Key	2,3,4,5,5,5,6,7,7,7,7,7,7,8,8,8,9,9,9,9,10,11,12,13,14,15,16,17,18,19,20,21,22,23,24,NS
