Jandy/Zodiac - Heater Parts - Lite2 Lj Pool/Spa Heater (Discontinued 2003 - 2009)

In stock

SKU

Jandy/Zodiac - Lite2 LJ-GROUPED

Grouped product items
Key	Product Name	Add Qty
1	PTS-R0317003 (Jandy Burner Tray, Shelf Only, 250)	- +
1	PTS-R0317100 (Jandy Gas Valve, Natural)	- +
2	PTS-L0032900 (Gas Orifice Lp 0-5 000 Ft.)	- +
2	PTS-R0469800 (Jandy Burner, Main, Model All, Lrze And Lrzm)	- +
2	PTS-R0366500 (Jandy High Voltage Assembly Box, Lj)	- +
2	PTS-R0384900 (Jandy Fuse, 2 Amp Replacement Kit , 5/Pk)	- +
2	PTS-R0366800 (Jandy Power Control Board Replacement Kit)	- +
3	PTS-R0057800 (Jandy Siphon Loop Assembly)	- +
3	PTS-R0013200 (Jandy Water Pressure Switch Only Kit)	- +
4	PTS-R0015500 (Jandy Pressure Switch, 1-10 Psi, Model All, Lrze And Lrzm)	- +
4	PTS-R0023200 (Jandy High-Limit Switch Assembly Replacement Kit)	- +
6	PTS-R0023000 (Jandy High-Limit Switch,150Degree F Replacement Kit Model All, Lrze And Lrzm Model All, Lrze And Lrzm)	- +
7	PTS-R0012200 (Jandy Fusible Link Assembly, Replacement Kit Model All, Lrze/Lrzm)	- +
0	PTS-R0449800 (Jandy Lj Igniter Assembly Replacement Kit)	- +
9	PTS-R0367100 (Jandy Igniter Replacement Kit)	- +
NS	PTS-R0325900 (Jandy Wire Harness Set, Complete Replacement Kit, All)	- +
10	PTS-R0056400 (Jandy Inlet/Outlet Header, 2")	- +
11	PTS-R0016800 (Jandy Header, In/Out,Bronze 2")	- +
12	PTS-R0057000 (Jandy Header Bolt Kit)	- +
13	PTS-R0050800 (Jandy Header Gasket Set Of 18)	- +
14	PTS-R0055000 (Jandy Flange And Gasket Assembly)	- +
18/20	PTS-10573500 (Jandy Flange, 2")	- +
18/19	PTS-S0078000 (Jandy Flange Gasket, 2")	- +
19	PTS-S0078100 (Jandy Gasket, Adapter, 2"X1 1/2")	- +
21	PTS-S0078200 (Jandy Flange Sleeve, 2")	- +
22	PTS-R0461500 (Jandy Flange And Gasket Kit, Bronze, Model All, Lrze And Lrzm)	- +
23	PTS-P0026800 (Jandy Pipe Plug 1/4" Npt)	- +
NS	PTS-P0027000 (Jandy Pipe Plug 0.75" Npt)	- +
28	PTS-R0011500 (Jandy Bypass Valve Disc)	- +
30/31	PTS-S0079900 (Jandy By Pass Spring, 2" Header, 125 Purple)	Out of stock
31	PTS-S0061400 (Jandy By-Pass Spring, White)	- +
33	PTS-R0054900 (Jandy Bypass Assembly, 2")	- +
NS	PTS-R0011400 (Jandy Gasket, Flow Control Replacement Kit)	- +
40	PTS-R0018104 (Jandy Heat Exchanger Tube Assembly, 325)	- +
41	PTS-10697403 (Jandy Baffle Heat Exchanger 250 8 Required)	- +
41	PTS-10697405 (Jandy Baffle Heat Exchanger 400 8 Required)	Out of stock
42	PTS-R0460300 (Jandy Grommet, Seal 2" Replacement Kit)	- +
45	PTS-R0040400 (Jandy Press Relief Valve Kit, 75 Psi Bronze Model All, Lrze And Lrzm)	- +

Below You'Ll Find A Consolidated List Of The Replacement Parts For The Jandy/Zodiac Lite2 Lj (Discontinued, 2003 - 2009).Â

Details

A consolidated list of the replacement parts for the Jandy/Zodiac Lite2 LJ (Discontinued, 2003 - 2009). If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.

More Information

More Information
Enable Product	Enabled
Visibility	Catalog, Search

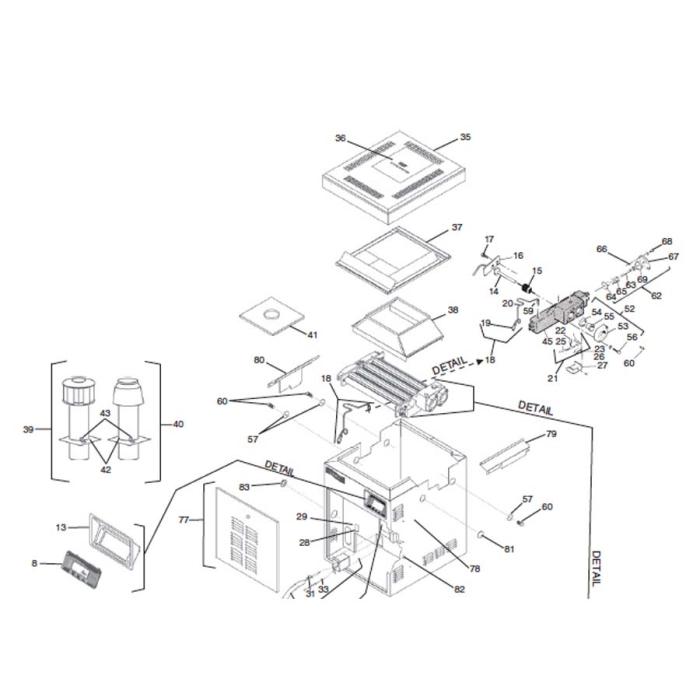

Part Diagram Key	1,1,2,2,2,2,2,3,3,4,4,6,7,0,9,NS,10,11,12,13,14,18/20,18/19,19,21,22,23,NS,28,30/31,31,33,NS,40,41,41,42,45,45,47,51,52,53,54,54,55,56,57,60,61,62,62,62,62,63,64,65,65,65,65,67,67,69,70,70,70,70,70,71,71,71,71,71,72,83,NS,NS
