Jandy/Zodiac - Pump Parts - Epump (Jep) Variable Speed Pump (2008 - Present) Jep 1.5, Jep 2.0

In stock

SKU

PMP-VSSHP220AUT-PTS-GROUPED

Grouped product items
Key	Product Name	Add Qty
1A	PTS-R0688600 (Jandy Variable Speed Drive,2.2-2.7Hp (Gen-Ii), Non-Svrs)	Out of stock
1	PTS-R0445200 (Jandy Backplate, Shp, Php, Mpm)	Out of stock
2	PTS-R0807200 (Jandy Screw, Mechanism, #6 X 5/16" Ss Sheet Metal, Blunt-End, 165/65/Turboturtle, 4/Pk)	Out of stock
3A	PTS-R0807201 (Jandy Impeller, Replacement Kit, Pump,Vsshp220, Shpf/Phpf1.5Hp, Shpm/Phpm2.0Hp)	- +
3A	PTS-R0445400 (Jandy Diffuser, Shp, Php, Mhp)	- +
4	PTS-R0622000 (Jandy O-Ring For Diffuser, Shp/Fhp/Vs-Fhp)	- +
4A	PTS-R0479400 (Jandy Mechanical Seal, Carbon And Ceramic, Fhpm, Vs-Fhp)	- +
5	PTS-R0445601 (Jandy Body, Pump, Shpf/Shpm)	- +
6	PTS-R0445700 (Jandy Motor Mounting Foot Assembly, Shp, Php, Mhp)	Out of stock
7	PTS-R0445800 (Jandy Locking Ring Shpf/Shpm)	- +
8	PTS-R0445900 (Jandy Filter Basket Shpf/Shpm)	- +
9	PTS-R0446000 (Jandy Drain Plug Lrze/Lrzm, Fhp, Vs-Fhp)	- +
10	PTS-R0446101 (Jandy Tail Piece (2" By 2.5") Shpf/Shpm1.75-2.5)	- +
11	PTS-R0446200 (Jandy O-Ring, Lid Shpf/Shpm Shp, Replacement Kit)	- +
12	PTS-R0479000 (Blue Pressure Test O-Ring All)	Out of stock
13	PTS-R0446300 (Jandy O-Ring, Backplate Shp, Php, Mhp)	- +
14	PTS-R0446400 (Jandy O-Ring, Tail Piece Shpf/Shpm Shp, Replacement Kit)	- +
15	PTS-R0446500 (Jandy Diffuser/Impeller Hardware, Shp, Php, Mhp)	- +
16	PTS-R0446600 (Jandy Backplate Hardware, Shp, Php, Mhp)	Out of stock
17	PTS-R0446700 (Jandy Motor Hardware, Shp, Php, Mhp, Fhp, Vs-Fhp)	- +
18	PTS-R0562400 (Jandy Fan Cover, 1-3Hp Jep, Gen Ii)	Out of stock
21	PTS-6609 (Jandy Terminal Bar Connector, 4 Pin Red, Aqualink Rs)	Out of stock
22	PTS-R0501100 (Jandy Data Cable Bulkhead Fitting Straight-Thru, Replacement Kit)	Out of stock
23	PTS-R0515400 (Jandy Screw With O-Ring, Self-Sealing, Shp Series, Fhpm, Vs-Fhp)	- +
24	PTS-R0562600 (Jandy Screw, Electric Box, Gen Ii)	Out of stock
26	PTS-R3009601 (Jandy User Interface Replacement Kit)	- +

Below You'Ll Find A Consolidated List Of The Replacement Parts For The Jandy/Zodiac Epump (Jep) Variable Speed Pump (2008 - Present) Jep 1.5, Jep 2.0 And The Associated Models Vsshp220Aut, Vsshp270Aut.Â

Details

A consolidated list of the replacement parts for the Jandy/Zodiac EPump (JEP) Variable Speed Pump (2008 - Present) JEP 1.5, JEP 2.0 and the associated models VSSHP220AUT, VSSHP270AUT. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.

More Information

More Information
Enable Product	Enabled
Visibility	Catalog, Search

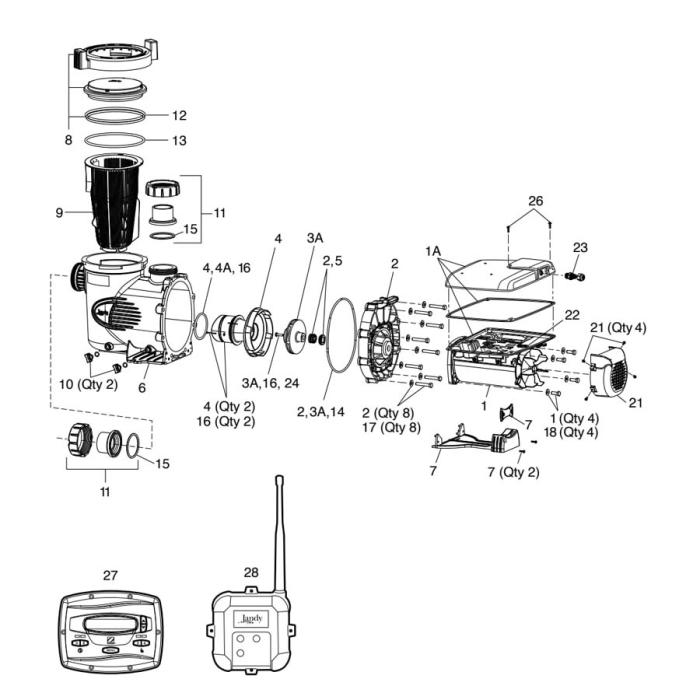

Part Diagram Key	1A,1,2,3A,3A,4,4A,5,6,7,8,9,10,11,12,13,14,15,16,17,18,21,22,23,24,26,NS,NS
