Jacuzzi - Pump Parts - Magnum Force V, Magnum Force & Force 3 Pump

In stock
SKU
PMP-94027115-PTS-GROUPED
Grouped product items
Key Product Name Inventory Add Qty
1 PTS-42282806R (COVER RING LOK)
-
+
2 PTS-39257902R (STRAINER COVER F/MAGN, R,P)
-
+
3 PTS-47035803R (O-RG 5.600X6.020X.210 B-N)
-
+
4 PTS-16108606R (MAG FORCE BASKET ASSY)
-
+
4 PTS-16113409R (MAG FORCE BASKET ASSY 12'TALL)
-
+
4A PTS-16113510R (Magnum Flapper Assembly 2004)
-
+
5 PTS-03090602R (FORCE BODY 2)
-
+
5A PTS-03090701R (Force Body 3)
-
+
6 PTS-31174600R (Strainer Basket Air Bleed Tube)
-
+
7 PTS-31160906R2 (PLUG 1/4-18NPSM W/O-RING 2/BAG)
-
+
7 PTS-31160906R50 (PLUG 1/4-18NPSM W/O-RING 50/BG)
-
+
8 PTS-12112603R (Mot Base Mag Force)
-
+
8A PTS-12112405R (Magnum Force Motor Support)
-
+
9 PTS-47023254R (SQ-RG 2-3/4X1/8X1/8NTRL)
-
+
10 PTS-14420608R5 (Hexwash Hd A8-16X1-1/4Ss 5/Bag)
-
+
12 PTS-10146207R (FLOATING EYE SEAL 2½DX3/8 ELAS)
-
+
12 PTS-10146314R (Seal Ring 3Dx3/8Thk Epdm)
-
+
14 PTS-10139020R (REPLMNT SHAFT SEAL 3/4 T16)
-
+
15 PTS-47036447R (JACUZZI O-RG)
-
+
17 PTS-14129324R4 (Hex Cap Pl 3/8-16X7/8)
-
+
18 PTS-02136802R (Brkt Mtr Mtg, Magnum #9981)
-
+
19 PTS-42288605R (9980 PUMP MTG NUT PC)
-
+
20 PTS-42286708R (8498 Mtg Nut Ratchet Drln)
-
+
21 PTS-22340301R (Flinger )
-
+
23 PTS-31150109R2BLK (2" Slip Bodyunion Black (2)
-
+
24 PTS-42234506K (Magnum Force Strainer Kit)
Out of stock
25 PTS-62688002 (MOTOR COVER MAGNUM FORCE)
-
+

Below Are The Consolidated Parts For The Jacuzzi Magnum Force V, Magnum Force & Magnum Force 3 Pump.&Nbsp;

The consolidated parts for the Jacuzzi Magnum Force V, Magnum Force & Magnum Force 3 Pump. If you're having trouble finding the parts you need, feel free to reach out to one of our representatives in the contact section below.

More Information
Enable Product Enabled
Visibility Catalog, Search

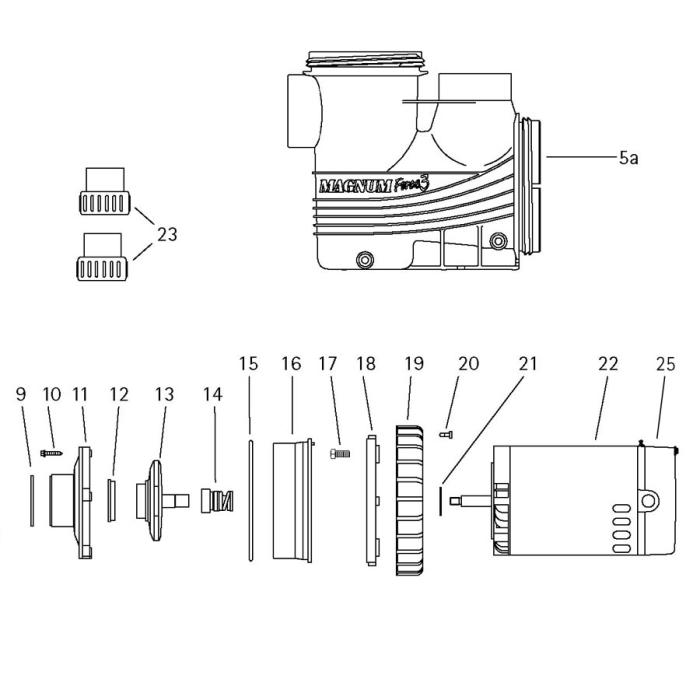

Part Diagram Key 1,2,3,4,4,4A,5,5A,6,7,7,8,8A,9,10,12,12,14,15,17,18,19,20,21,23,24,25
